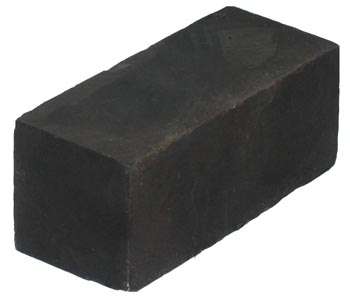

Aimant permanent rectangulaire en samarium type AS 02
REF 120.02
Aimant permanent rectangulaire en samarium type AS 02
-
- .
-
- .
-
- .
-
- .
-
Zastosowanie :
- Circuit haute Tp°
- Prothèse médicale
-
Maksymalna temperatura zastosowania :
- 250 °C
-
Densité :
- 8.2 gr/cm³
-
Max indukcja magnetyczna na powierzchni :
- 4000 G
| Ilość | Produkt | Waga w kg | A | B | C | D |
|---|---|---|---|---|---|---|
| 120.02-7.5x4x1.5 | 0.0004 | 7.5 | 4 | 1.5 | 3.4N | |
| 120.02-7.5x6x2 | 0.0007 | 7.5 | 6 | 2 | 5N | |
| 120.02-10x5x3 | 0.0012 | 10 | 5 | 3 | / | |
| 120.02-10x7.5x2 | 0.0013 | 10 | 7.5 | 2 | 7.5N | |
| 120.02-12x9.5x2.5 | 0.0025 | 12 | 9.5 | 2.5 | 11N | |
| 120.02-12.5x6.5x5.5 | 0.004 | 12.5 | 6.5 | 5.5 | / | |
| 120.02-15x15x3 | 0.006 | 15 | 15 | 3 | / | |
| 120.02-16x12.5x2.5 | 0.004 | 16 | 12.5 | 2.5 | 15N | |
| 120.02-18x16.5x4 | 0.010 | 18 | 16.5 | 4 | 29N | |
| 120.02-20x10x2.5 | 0.004 | 20 | 10 | 2.5 | / | |
| 120.02-20x10x5 | 0.008 | 20 | 10 | 5 | / | |
| 120.02-20x12x5 | 0.010 | 20 | 12 | 5 | / | |
| 120.02-25x8x6 | 0.010 | 25 | 8 | 6 | / | |
| 120.02-26x20.3x5 | 0.022 | 26 | 20.3 | 5 | 51N | |
| 120.02-30x10x6 | 0.015 | 30 | 10 | 6 | / | |
| 120.02-33x26.3x6.5 | 0.047 | 33 | 26.3 | 6.5 | 85N | |
| 120.02-50x50x25 | 0.512 | 50 | 50 | 25 | / | |
| 120.02-62x62x2 | 0.065 | 62 | 62 | 2 | / | |
| 120.02-62x62x4 | 0.130 | 62 | 62 | 4 | / | |
| 120.02-62x62x10 | 0.315 | 62 | 62 | 10 | / | |
| 120.02-100x100x3 | 0.245 | 100 | 100 | 3 | / | |
| 120.02-100x100x5 | 0.410 | 100 | 100 | 5 | / | |
| 120.02-100x100x10 | 0.820 | 100 | 100 | 10 | / | |
| 120.02-2x2x1 | - | 2 | 2 | 1 | / | |
| 120.02-4x4x2 | - | 4 | 4 | 2 | / | |
| 120.02-5x5x1.5 | - | 5 | 5 | 1.5 | / | |
| 120.02-5x5x3 | - | 5 | 5 | 3 | / | |
| 120.02-13x7x2.5 | - | 13 | 7 | 2.5 | / |
